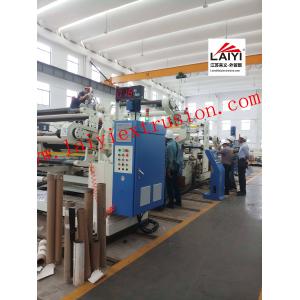

Auto Splicer Device Automatic Lamination Machine For Packaging Industry

Name: Auto Splicer Device Automatic Lamination Machine For Packaging Industry
Brand: Laiyi
Price: 1 USD

Brand Name : Laiyi

Certification : CE

Place of Origin : Changzhou

MOQ : 1 set

type : paper coating machine

condition : new

automatic gra : automatic

driven type : mechanical

voltage : 380V

lifetime : more than 10 year

Contact Now

Auto Splicer Device Automatic Lamination Machine For Packaging Industry

1. Double-sided adhesive release papers

Double-sided adhesive release papers and photo papers, etc

2. Double-sided adhesive release papers
Technical parameters

Machine specification	1200mm/1400mm/1700mm
Effective width	Max1100mm/1300mm/1600mm
Machine speed	350m/min
Extruder	LD-90mm/LD-100mm “Automatic lifting type extruder”
Extruder power	45-55kw
Extruder output	Max 200kg/h or 250kg/h
Used resins	Coated resins like LDPE/LLDPE/PP/EVA/EAA
Coating thickness	8-45μm
Thickness uniformity	≤±5％
Unwinding diameter	Max Φ1200mm
Rewinding diameter	Max Φ1200mm
Basic material	Paper(35-200g/㎡)
Tension control	Full automatic tension roller closed-loop constant tension control of unwinder and rewinder
Control mode	Human-machine interface, extrusion thickness is automatically precision calculated by computer, whole machine linkage control
Frequency converter	Imported AC digital vector control inverter
Machine Dimension(LWH)	21.85×(9.5-12)×4.5m

3. Double-sided adhesive release papers

Product Application

Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

4. Double-sided adhesive release papers

Main Features

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
